Vulnerabilities

Vulnerabilities Overview​

The Vulnerabilities section allows users to monitor, analyze, and manage vulnerabilities detected in the Software Items of the Software System Version. Vulnerabilities are automatically detected using Trivy for software items that have a repository ID and import the P4SaMD pipelines cve-generation-trivy.yml and send-cve-to-p4samd-webhook.yml.

Vulnerabilities Table​

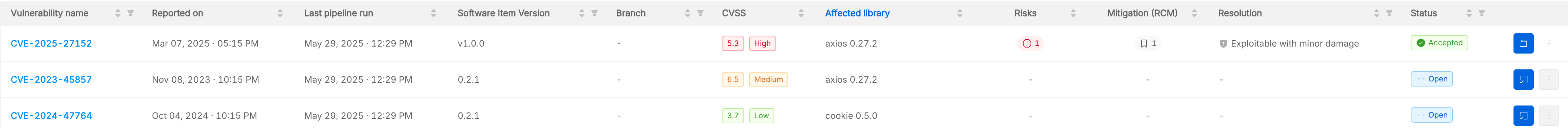

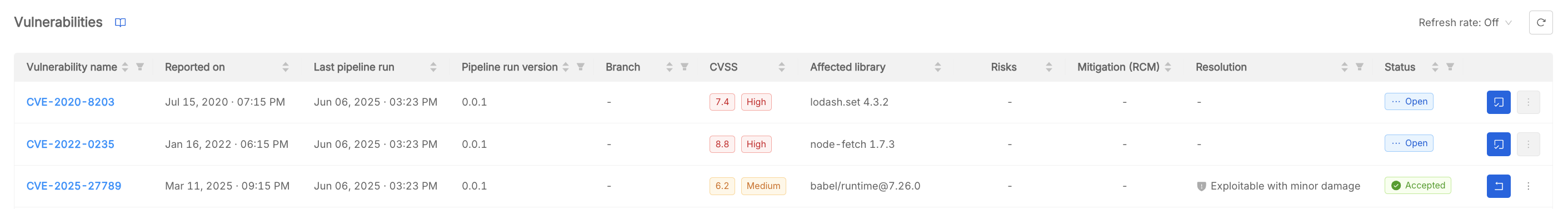

Vulnerabilities table

The vulnerabilities table provides an overview of all vulnerabilities related to all the implementation of the Software Item. The following information is shown:

  • Vulnerability Name: Name of the CVE (linked to the external advisory).
  • Reported On: Date when the vulnerability was reported.
  • Last Pipeline Run: Date of the last pipeline execution that detected the vulnerability.
  • Software Item Version: Version of the Software Item where the vulnerability was found.
  • Branch: Repository branch where the vulnerability was found.
  • CVSS: Trivy severity score and categorization.
  • Affected Library: Library where the vulnerability was found.
  • Risks: Number of risks connected to the acceptance of the vulnerability.
  • Mitigation (RCM): Number of RCMs connected to related risks.
  • Resolution: Resolution value of the accepted vulnerability.
  • Status: Status of the vulnerability (Open or Accepted).
  • Actions:
    • Accept/Revert Acceptance: Accept or revert acceptance of the vulnerability.
    • Edit vulnerability: Open a modal to edit the accepted vulnerability.

Clicking on a row opens the vulnerability detail drawer.

Vulnerability Detail Drawer​

Clicking on a vulnerability opens a drawer with detailed information, organized in two tabs:

Detail​

  • CVE link: Direct link to the external advisory.
  • Fix version: Versions where the vulnerability is fixed.
  • Status: Current status (Open, Accepted).
  • Reported on and Last pipeline run.
  • CVSS: Severity score and level.
  • Title and Description: Details about the vulnerability.
  • Resolution: How the vulnerability was resolved or justification for acceptance.
  • Rationale for connecting risks: Explanation for any linked risks.
  • Actions: Accept or revert acceptance of the vulnerability.

Traceability​

This tab shows the linked issues, grouped by:

Accepting or Reverting a Vulnerability​

Accept Vulnerability Flow​

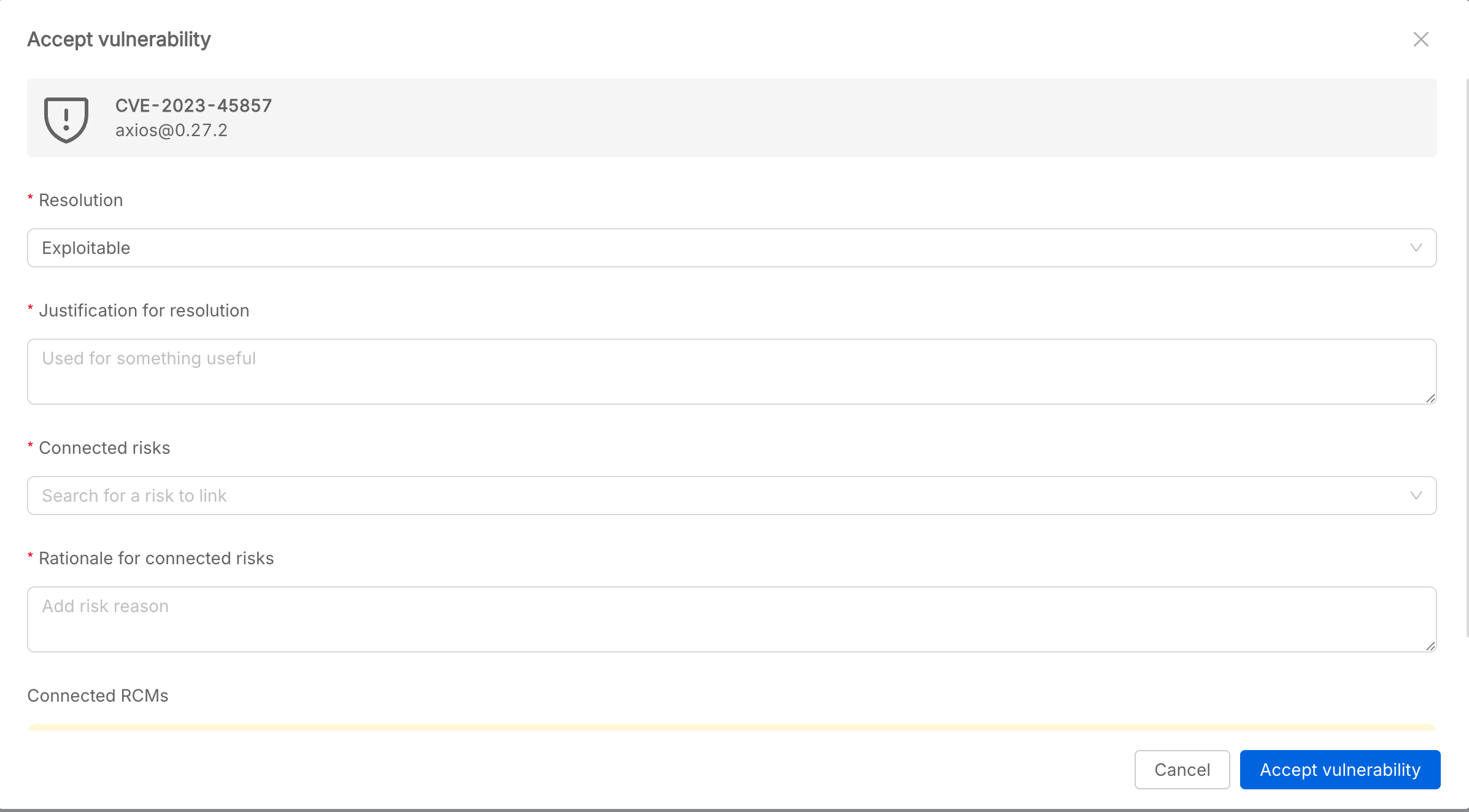

alt text

When accepting a vulnerability, the user must provide:

  • Resolution: The chosen resolution (Exploitable, Not exploitable, Exploitable with minor damage).
  • Justification for resolution: Reason for the chosen resolution.
  • Connected risks: Risks linked to the vulnerability.
  • Rationale for connected risks: Explanation for the risk linkage.
  • Connected RCMs: (if any) mitigation measures.

Revert Vulnerability Acceptance​

If a vulnerability was previously accepted, it is possible to revert the acceptance. A confirmation modal will appear to prevent accidental actions.

info

All vulnerability management actions are tracked and auditable.
Vulnerabilities must be resolved or justified to ensure compliance with security requirements.
